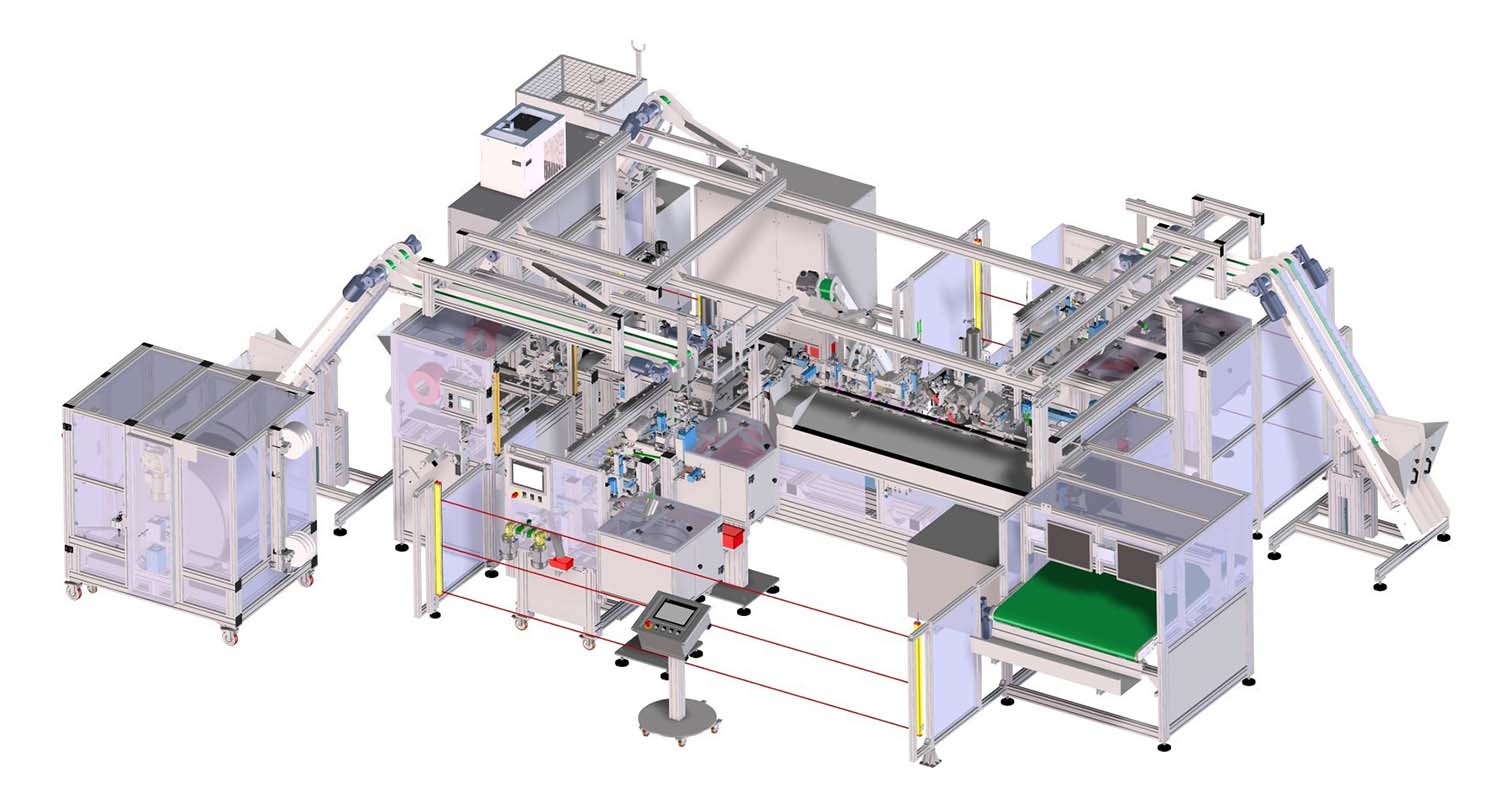

High-Speed
The machine is designed and built to cut and assembly hoses made of EPDM, PEX, CORRUGATED and SYLICON both SS and Plastic braided or even without braid.
The machine assemblies on both ends the ferrule, the fitting and the nut, crimping with concentric press and camera quality controls.
It is also possible assembly a cover and label the hose. The fitting feeding is fully automatic with a multi-purpose adaptable bench, enabling set up time reduction.
Assembled product
Look at the video
The gallery
Technical features
| langEN | Ø Pipe | min. DN6N - max. DN8 |
| langEN | Pipe length | min. 150 - max. 1500 |
| langEN | Cadence (piece / hour) | 1600 |
| langEN | Components assembled | 6 |
| langEN | Workstations | 14 - 16 |
| langEN | Operators in charge | 1 |
| langEN | Product change | 15 min. |
