Automatic hose feeding

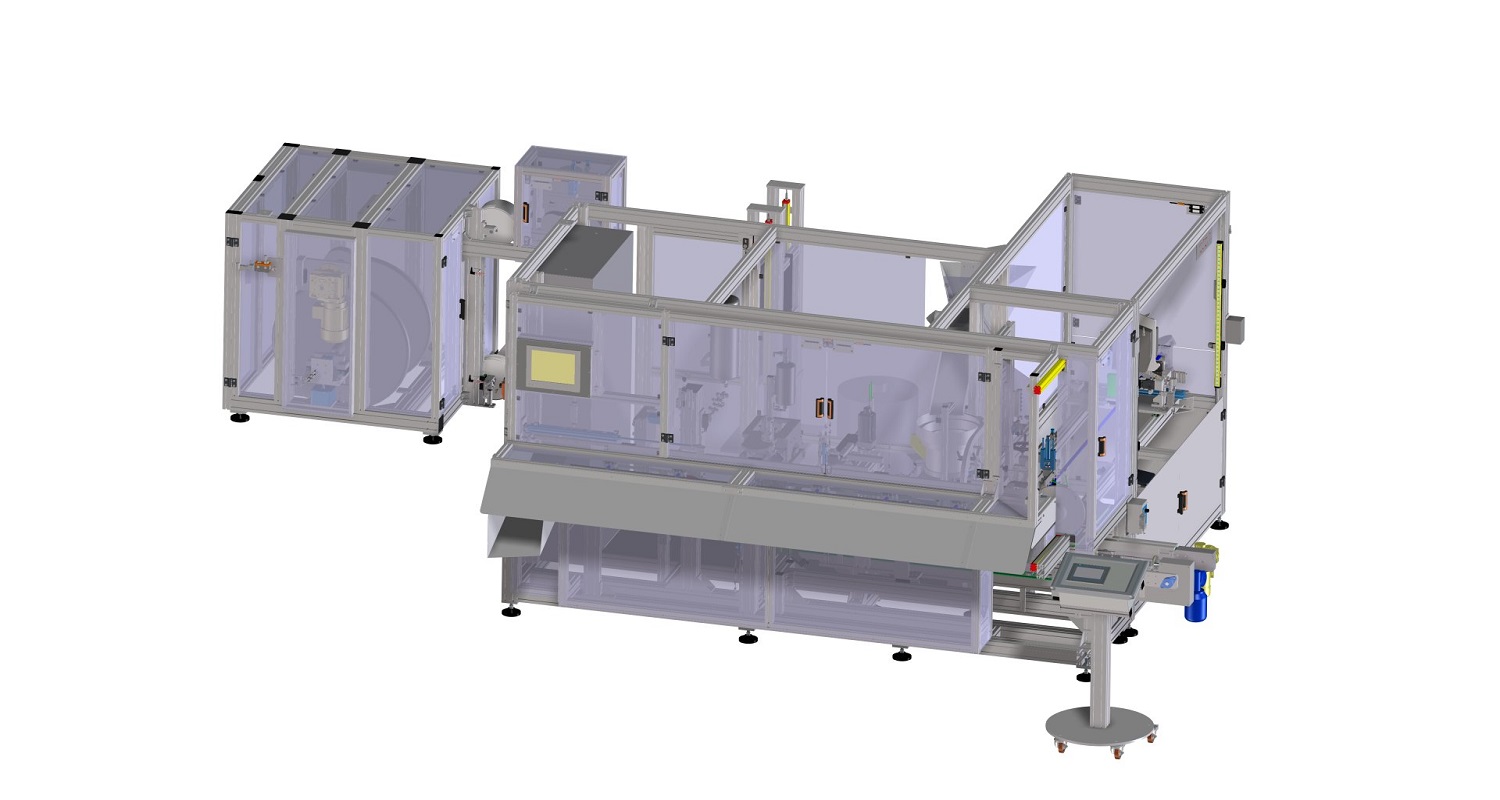

The machine is designed and built to cut and assembly hoses made of EPDM, PEX, CORRUGATED and SYLICON both SS and Plastic braided or even without braid.
The machine assemblies on one hose end the ferrule, the fitting (straight and elbow) and the nut, crimping with concentric press and camera quality controls. It is also possible to label the hose.
The fitting feeding is manual by operator on a conveyor belt.
The fitting feeding is manual by operator on a conveyor belt.
Assembled product
Look at the video
The gallery
Technical features
| langEN | Ø Pipe | min. DN6N – max. 1” |
| langEN | Pipe length | min. 150 – max. 2500 |
| langEN | Cadence (piece / hour) | 1000 |
| langEN | Components assembled | 4 - 5 |
| langEN | Workstations | 7 - 9 |
| langEN | Operators in charge | 1 |
| langEN | Product change | 15 min. |
